Overview:
The Nutanix Virtual Computing Platform integrates high-performance server resources with enterprise-class storage in a cost-effective 2U appliance. It eliminates the need for network-based storage architecture, such as a storage area network (SAN) or network-attached storage (NAS). The scalability and performance that the world’s largest, most efficient datacenters enjoy are now available to all enterprises and government agencies.
Benefits of NX Infrastructure
Simplicity
1-click IT operations from deployments in hours to non-disruptive software and firmware upgrades.
Flexibility
Mix and match node models and configurations as needed. Deploy only when required.
Integration
Single vendor solution with world-class 90+ Net Promoter Score (NPS) support.
Capabilities & Benefits:
Nutanix NX appliances provide a simple HCI solution for IT operations, from initial deployment through to support and maintenance with a single point of contact, and with hardware configurations designed for all application use cases.
Form-Factor Density
High density 2U 4-node form-factor platforms are designed for entry-level to mid-range compute and storage workload requirements.
The multi-node platforms provide density and flexibility important to Remote Office, Branch Office (ROBO) and test and development use cases.

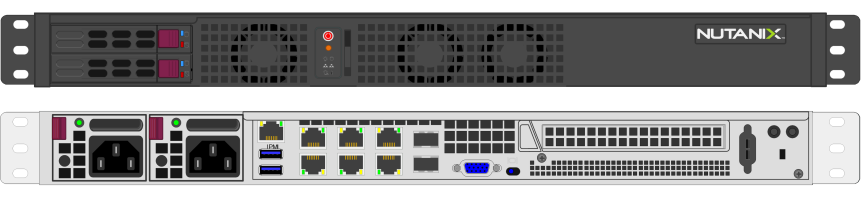

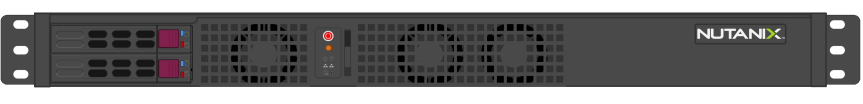

The NX-1120S has been purposely designed for when IT equipment space is limited. It is a 1U, ½ rack-depth appliance that fits standard telco racks, and has low power and cooling requirements to meet the most stringent remote office and edge network demands.
Specifications:

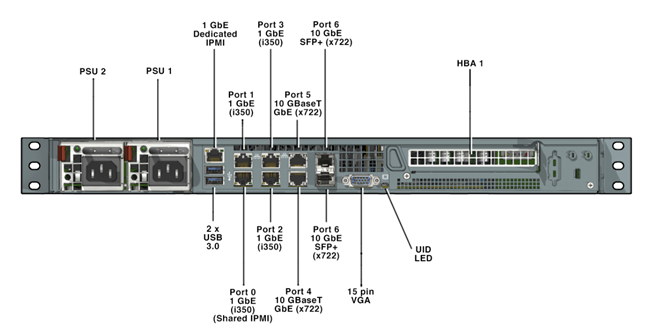

Rear View
| NX-1120S-G7 Specifications |
| Deployment Model |
Factory Installed Software |
| Use Case |
Remote Office/Branch Office |
| Server Compute** |
Single Intel Skylake D: Intel Xeon D-2146NT CPU [8 cores / 2.30 GHz] |
| Boot |
Single M.2 RAID1: [1] x 240GB M.2 Boot Device |
| Storage Capacity |
All SSD SED - [2] x SSD: [1.92 TB, 3.84 TB]
All SSD - [2] x SSD: [1.92 TB, 3.84 TB, 7.68 TB] |
| Memory |
64 GB, 128 GB, 256 GB |
| Network Connections |
Server-board: 2x 10GBaseT (1x IPMI Failover), 2x 10GbE SFP+, 1GbE Dedicated IPMI |
| GPU |
N/A |
| Certifications |
Energy Star, CSAus, FCC, CSA, ICES, CE, KCC, RCM, VCCI-A, BSMI, EAC, SABS, INMETRO,S-MARK, UKRSEPRO, BIS, CCC, ECAS/CE, KAN/SNI/CE, RoHS, Reach, WEEE |
Dimensions
(Per Block) |
Height: 1.69" (43 mm)
Width: 17.20" (437 mm)
Depth: 10.63" (270 mm)
Rack Units: 1U1N |
Weight
(Per Block) |
Standalone: 11.24 lbs.(5.1 kg)
Package: 19.20 lbs.(8.71 kg) |
| System Cooling |
3x 40 mm heavy duty fans with PWM fan speed controls |
Operating Environment
(Per Block) |
Op Temp Range: 50° to 95°F(10° to 35°C)
Non-Op Temp Range: -40° to 158°F(-40° to 70°C)
Op Humidity Range (non-condensing): 68° to 203°F(20° to 95°C)
Non-Op Humidity Range: 41° to 203°F(5° to 95°C) |
| Power Consumption |
Typical: 120W
Maximum: 180W |
Power Supply
(Per Block) |
0.3kW Output @100-240V, 3.0-5.0A, 50-60Hz
Energy Star 80+ Titanium |
| Thermal Dissipation |
Typical: 410.0 BTU/hr
Maximum: 615.0 BTU/hr |
Operating Requirements
(Per Block) |
Input Voltage: 100-240V AC auto-range, Input Frequency: 50-60Hz |
** Number of cores per CPU socket.
Use Cases:
Nutanix NX series platforms are designed for use in all hyperconverged infrastructure, hybrid and private cloud solutions.
Node models and configurations with different storage types can be mixed in a cluster, enabling organizations to reduce infrastructure silos.
