Nutanix NX-8150-G8
Purpose-Built Hyperconverged Infrastructure (HCI) Appliances for Hybrid Clouds

Nutanix NX-8150-G8

Contact us for Pricing!

Get a Quote

Nutanix NX nodes are purpose-built SuperMicro appliances with configuration options for all hyperconverged infrastructure (HCI) use cases. They offer a streamlined IT operations (ITOps) experience for all your workloads from day-0 through day-n.

Overview

Capabilities & Benefits

Specifications

Use Cases

Overview:

The Nutanix Virtual Computing Platform integrates high-performance server resources with enterprise-class storage in a cost-effective 2U appliance. It eliminates the need for network-based storage architecture, such as a storage area network (SAN) or network-attached storage (NAS). The scalability and performance that the world’s largest, most efficient datacenters enjoy are now available to all enterprises and government agencies.

Benefits of NX Infrastructure

Simplicity

1-click IT operations from deployments in hours to non-disruptive software and firmware upgrades.

Flexibility

Mix and match node models and configurations as needed. Deploy only when required.

Integration

Single vendor solution with world-class 90+ Net Promoter Score (NPS) support.

Capabilities & Benefits:

Nutanix NX appliances provide a simple HCI solution for IT operations, from initial deployment through to support and maintenance with a single point of contact, and with hardware configurations designed for all application use cases.

High Performance

With maximum flexibility for high performance compute and storage configurations, these platforms are ideally suited to large scale datacenter solutions featuring business-critical applications and databases, big data and analytics, and other server virtualization use cases.

Sizer screenshot showing EUC plan.

Specifications:

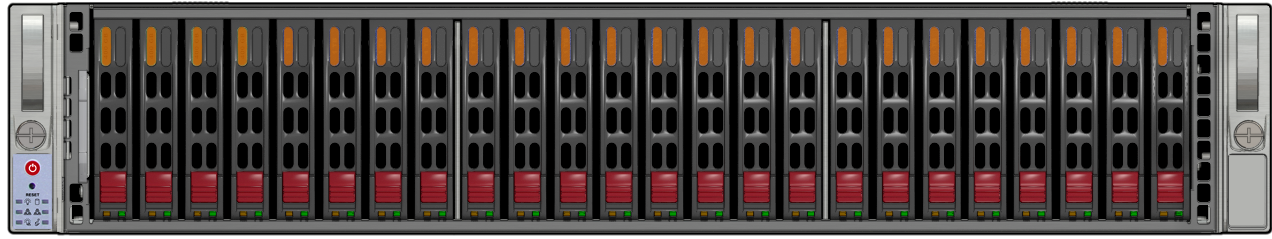

Front View

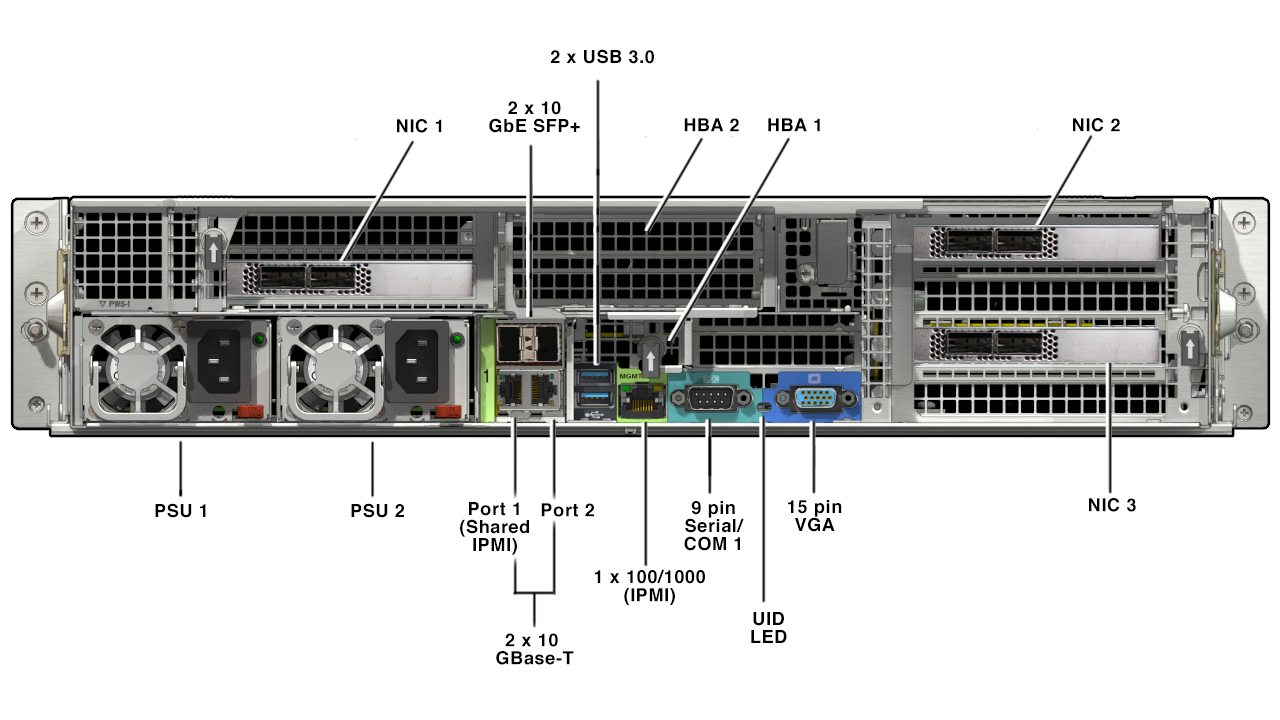

Rear View

NX-8150-G8 Specifications
Deployment Model	Factory Installed Software
Use Case	Database and Business Critical Apps, Backup and Disaster Recovery, Analytics and Big Data, Files and Objects
Server Compute**	Dual Intel Ice Lake: Intel Xeon Silver 4310 [12 cores / 2.10 GHz] Intel Xeon Silver 4314 [16 cores / 2.40 GHz] Intel Xeon Silver 4316 [20 cores / 2.30 GHz] Intel Xeon Gold 5315Y [8 cores / 3.20 GHz] Intel Xeon Gold 5317 [12 cores / 3.00 GHz] Intel Xeon Gold 5318Y [24 cores / 2.10 GHz] Intel Xeon Gold 5320 [26 cores / 2.20 GHz] Intel Xeon Gold 6326 [16 cores / 2.90 GHz] Intel Xeon Gold 6334 [8 cores / 3.60 GHz] Intel Xeon Gold 6338 [32 cores / 2.00 GHz] Intel Xeon Gold 6342 [24 cores / 2.80 GHz] Intel Xeon Gold 6346 [16 cores / 3.10 GHz] Intel Xeon Gold 6348 [28 cores / 2.60 GHz] Intel Xeon Gold 6354 [18 cores / 3.00 GHz] Intel Xeon Platinum 8358 [32 cores / 2.60 GHz] Intel Xeon Platinum 8360Y [36 cores / 2.40 GHz] Intel Xeon Platinum 8380 [40 cores / 2.30 GHz]
Boot	Dual M.2 RAID1: [2] x 512GB M.2 Boot Device
Storage Capacity	All SSD SED - [4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24] x SSD: [1.92 TB, 3.84 TB] NVMe+SSD - [4] x NVMe: [1.92 TB, 3.84 TB, 7.68 TB], [8, 10, 12, 14, 16, 18, 20] x SSD: [1.92 TB, 3.84 TB, 7.68 TB] All SSD - [4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24] x SSD: [1.92 TB, 3.84 TB, 7.68 TB]
Memory	128 GB, 256 GB, 384 GB, 512 GB, 768 GB, 1024 GB, 1536 GB, 2048 GB, 3072 GB, 4096 GB
Network Connections	Server-board [1] 1GbE Dedicated IPMI [2] 10GbE SFP+ [2] 10GBaseT (IPMI Failover) Network Card [0, 1, 2, 3] x 10GBaseT 2P NIC [0, 1, 2, 3] x 10GBaseT 4P NIC [0, 1, 2, 3] x 10GbE 4P NIC [0, 1, 2, 3] x 25GbE 2P NIC [0, 1, 2] x 100GbE 2P NIC
GPU	N/A
Certifications	Energy Star, CSAus, FCC, CSA, UL, cUL, ICES, CE, UKCA, KCC, RCM, VCCI-A, BSMI, EAC, SABS, S-MARK, UKRSEPRO, BIS, SII, RoHS, Reach, WEEE
Dimensions (Per Block)	Height: 3.47" (88.10 mm) Width: 17.36" (440.90 mm) Depth: 28.37" (720.60 mm) Rack Units: 2U1N
Weight (Per Block)	Standalone: 48.94 lbs.(22.2 kg) Package: 74.52 lbs.(33.8 kg)
System Cooling	4x 80 mm heavy duty fans with PWM fan speed controls
Operating Environment (Per Block)	Op Temp Range: 50° to 95°F(10° to 35°C) Non-Op Temp Range: -49° to 158°F(-45° to 70°C) Op Humidity Range (non-condensing): 68° to 194°F(20° to 90°C) Non-Op Humidity Range: 41° to 203°F(5° to 95°C)
Power Consumption	Typical: 902W Maximum: 1289W
Power Supply (Per Block)	1.0kW Output @100-127V, 11.0-14.0A, 50-60Hz 1.8kW Output @180-220V, 11.0-14.0A, 50-60Hz 2.0kW Output @220-240V, 9.8-10.0A, 50-60Hz Energy Star 80+ Titanium
Thermal Dissipation	Typical: 3076.0 BTU/hr Maximum: 4396.0 BTU/hr
Operating Requirements (Per Block)	Input Voltage: 100-240V AC auto-range, Input Frequency: 50-60Hz

** Number of cores per CPU socket.

Use Cases:

Nutanix NX series platforms are designed for use in all hyperconverged infrastructure, hybrid and private cloud solutions.

Node models and configurations with different storage types can be mixed in a cluster, enabling organizations to reduce infrastructure silos.
