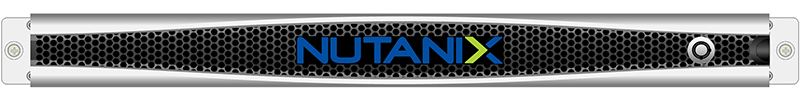

| NX-8170-G8 Specifications |
| Deployment Model |
Factory Installed Software |
| Use Case |
Database and Business Critical Apps, Analytics and Big Data |
| Server Compute** |
Dual Intel Ice Lake:
- Intel Xeon Silver 4310 [12 cores / 2.10 GHz]
- Intel Xeon Silver 4314 [16 cores / 2.40 GHz]
- Intel Xeon Silver 4316 [20 cores / 2.30 GHz]
- Intel Xeon Gold 5315Y [8 cores / 3.20 GHz]
- Intel Xeon Gold 5317 [12 cores / 3.00 GHz]
- Intel Xeon Gold 5318Y [24 cores / 2.10 GHz]
- Intel Xeon Gold 5320 [26 cores / 2.20 GHz]
- Intel Xeon Gold 6326 [16 cores / 2.90 GHz]
- Intel Xeon Gold 6334 [8 cores / 3.60 GHz]
- Intel Xeon Gold 6338 [32 cores / 2.00 GHz]
- Intel Xeon Gold 6346 [16 cores / 3.10 GHz]
- Intel Xeon Gold 6354 [18 cores / 3.00 GHz]
- Intel Xeon Platinum 8352Y [32 cores / 2.20 GHz]
- Intel Xeon Gold 6342 [24 cores / 2.80 GHz]
- Intel Xeon Gold 6348 [28 cores / 2.60 GHz]
|
| Boot |
Dual M.2 RAID1: [2] x 512GB M.2 Boot Device |
| Storage Capacity |
NVMe with Intel Optane -
[2] x NVMe: [0.75 TB, 1.5 TB]
[4, 6, 8] x NVMe: [1.92 TB, 3.84 TB, 7.68 TB]
All NVMe -
[2, 4, 6, 8, 10] x NVMe: [1.92 TB, 3.84 TB, 7.68 TB] |
| Memory |
128 GB, 256 GB, 384 GB, 512 GB, 768 GB, 1024 GB, 1536 GB, 2048 GB |

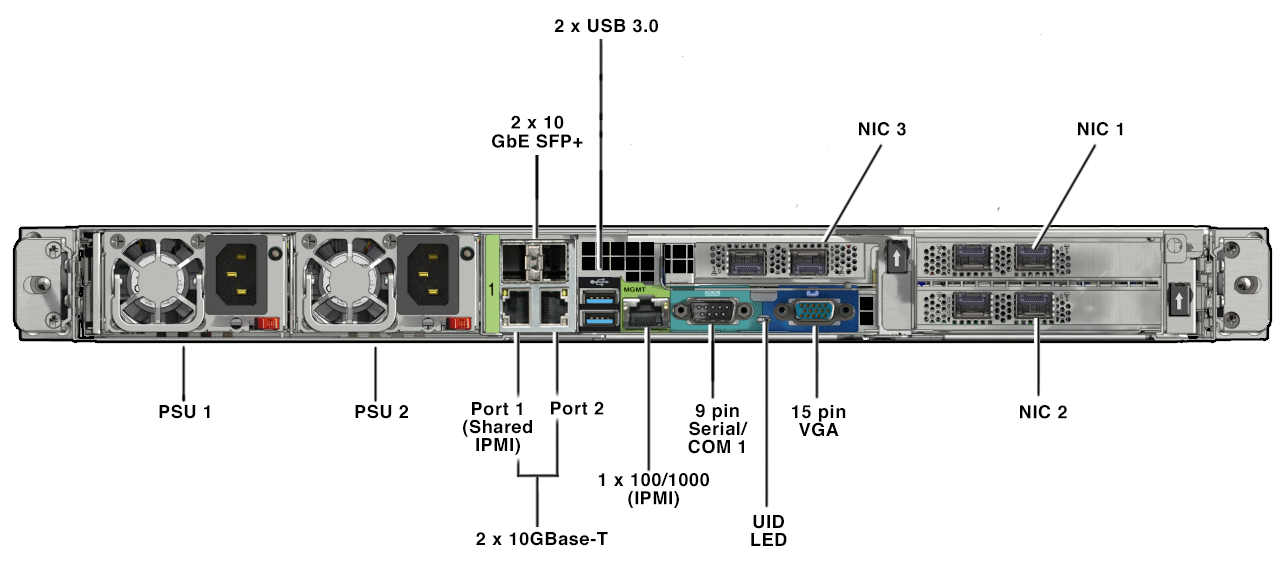

| Network Connections |
Server-board
- [1] 1GbE Dedicated IPMI
- [2] 10GbE SFP+
- [2] 10GBaseT (IPMI Failover)
Network Card
- [0, 1, 2, 3] x 10GBaseT 2P NIC
- [0, 1, 2, 3] x 10GBaseT 4P NIC
- [0, 1, 2, 3] x 10GbE 4P NIC
- [0, 1, 2, 3] x 25GbE 2P NIC
- [0, 1, 2] x 100GbE 2P NIC
|
| GPU |
N/A |
| Certifications |
Energy Star, CSAus, FCC, CSA, UL, cUL, ICES, CE, UKCA, KCC, RCM, VCCI-A, BSMI, EAC, SABS, S-MARK, UKRSEPRO, BIS, SII, RoHS, Reach, WEEE |
Dimensions
(Per Block) |
Height: 1.70" (43.30 mm)
Width: 17.25" (438.15 mm)
Depth: 28.54" (725 mm)
Rack Units: 1U1N |
Weight
(Per Block) |
Standalone: 41.01 lbs.(18.6 kg) |
| System Cooling |
8x 40 mm heavy duty fans with PWM fan speed controls |
Operating Environment
(Per Block) |
Op Temp Range: 50° to 86°F(10° to 30°C)
Non-Op Temp Range: -49° to 158°F(-45° to 70°C)
Op Humidity Range (non-condensing): 68° to 194°F(20° to 90°C)
Non-Op Humidity Range: 41° to 203°F(5° to 95°C) |
| Power Consumption |
Typical: 830W
Maximum: 1186W |
Power Supply
(Per Block) |
1.0kW Output @100-127V, 11.0-14.0A, 50-60Hz
1.8kW Output @180-220V, 11.0-14.0A, 50-60Hz
2.0kW Output @220-240V, 9.8-10.0A, 50-60Hz
Energy Star 80+ Titanium |
| Thermal Dissipation |
Typical: 2830.0 BTU/hr
Maximum: 4044.0 BTU/hr |
Operating Requirements
(Per Block) |
Input Voltage: 100-240V AC auto-range, Input Frequency: 50-60Hz |
** Number of cores per CPU socket.
